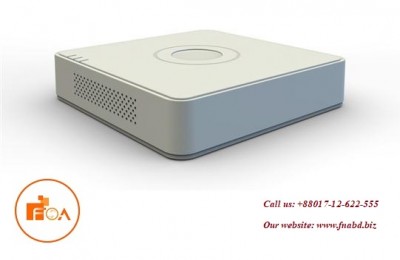

2MP/1080P HD TVI CAMERA& DVR

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input:

4-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Audio Compression:

G.711u

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

HDMI/VGA Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution:

When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame Rate:

Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps;
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps-6 Mbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA(Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

4-ch

Network management

Remote connections:

32

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF

Hard Disk Driver

Interface Type:

1 SATA Interface

Capacity:

Up to 4TB capacity for each disk

External Interface

Network Interface:

1; 10M / 100M self-adaptive Ethernet interface

USB Interface:

2 USB 2.0 Interfaces

General

Power Supply:

12V DC

Consumption:

≤ 8W(without hard disks)

Working Temperature:

-10 oC ~+55 oC (14 oF ~ 131 oF)

Working Humidity:

10% ~ 90%

Chassis:

Mini 1U chassis

Dimensions:

200 × 200 × 45 mm
(7.9 × 7.9 × 1.8 inch)

Weight:

≤ 1 kg (2.2 lb)
