Brand: TP-Link
Product Code: TL-SG1005D
Availability: In Stock
Product Overview:

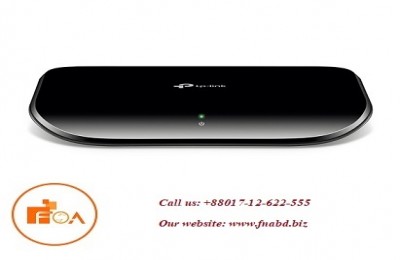

5-Port Gigabit Desktop Switch
5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design
Plug and play, no configuration required
Product Specification:
HARDWARE FEATURES
Interface
5 10/100/1000Mbps RJ45 Ports
Auto Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
No
External Power Supply
External Power Adapter
(Output: 9VDC / 0.6A)
Dimensions ( W x D x H )
5.5 × 3.5 × 0.9 in.
(140 × 88 × 23 mm)
Max Power Consumption
2.4W
Max Heat Dissipation
8.2 BTU/h
SOFTWARE FEATURES
Transmission Method
Store and Forward
Advanced Functions
Green Technology
802.3x Flow Control
Back Pressure
802.1p/DSCP QoS
OTHERS
Certification
FCC, RoHs
Package Contents
5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
